AI fish detection for sport fishing

Sharpshoot fish from your sonar.

Detect, size and map fish from your sonar. In real time on the water with the Marlin edge AI box, and from anywhere in the Ocean Hub online platform.

The Ocean Hub is free to start. No Marlin box needed.

Live sonar · fish detected and depth-tagged
The Marlin edge AI box

What you get

Marlin on the boat. Ocean Hub to review trips from anywhere.

Marlin finds and sizes fish live. The Ocean Hub keeps every trip and is free, with or without a box.

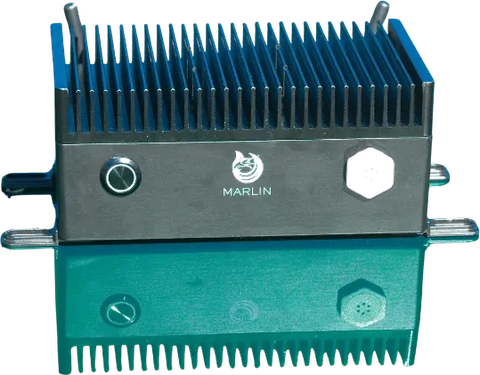

Front of the Marlin edge AI box, with its power button and the Marlin logo

Hardware · on the boat

Marlin edge AI box

A sealed AI computer for your boat. It reads your sonar and detects and sizes fish in real time. No internet needed.

Marlin Connect app on a phone

Mobile app · needs a Marlin

Marlin Connect

An optional second screen for your Marlin, on your phone or tablet. Free on iOS and Android.

Ocean Hub trip replay: the map beside the sonar for one fishing day

Web app · no Marlin needed

Ocean Hub

Free web app for every trip. Upload from your sonar's SD card or sync from your Marlin, then replay the day.

Two ways in. One Ocean Hub.

With a Marlin box: your sonar display sends live sonar to the Marlin box over one Ethernet cable. The box detects and sizes fish with no internet, and you see it live on your display, on a phone or tablet with the Marlin Connect app, or on both at once. At the dock the box syncs your trips to the Ocean Hub. Without a Marlin: record sonar to your display's SD card and upload the file to the Ocean Hub, which runs AI detection on it.

On the boatWith a Marlin. No internet needed.

Your sonar displaySends live sonar over one Ethernet cable.
Marlin boxDetects and sizes fish in real time.
See it liveOn your display, your phone, or both.

From anywhereFree web app.

Ocean HubReplay every trip and plan the next one.
No Marlin?

Record on your sonar, then upload the file. The Ocean Hub runs AI detection on it.

Ocean Hub · free web app

Start free today, with or without a Marlin.

Replay any day and see where the fish were, how deep and on what tide.

Ocean Hub Trips page: five fishing days listed beside a map with a heat trail, and the Insights panel showing best depth and best spots

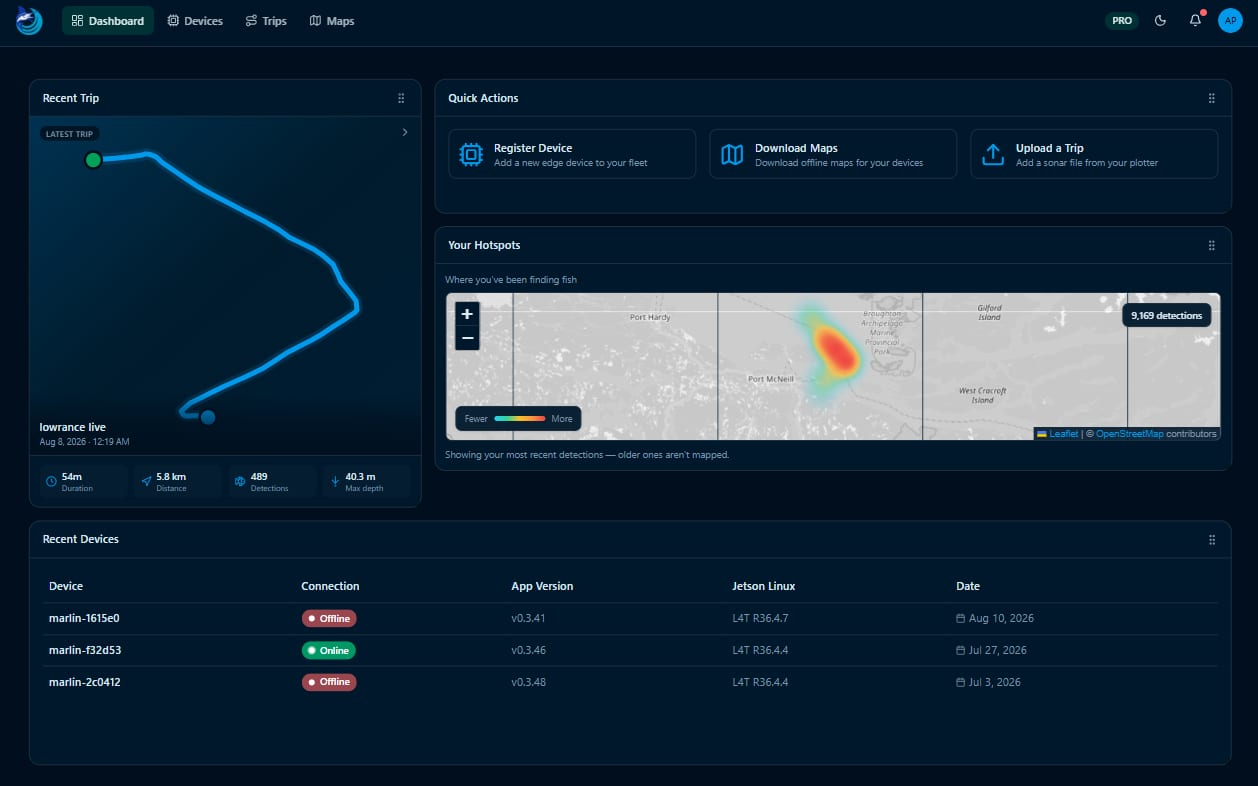

Ocean Hub dashboard with a recent trip, hotspot heatmap and registered devices

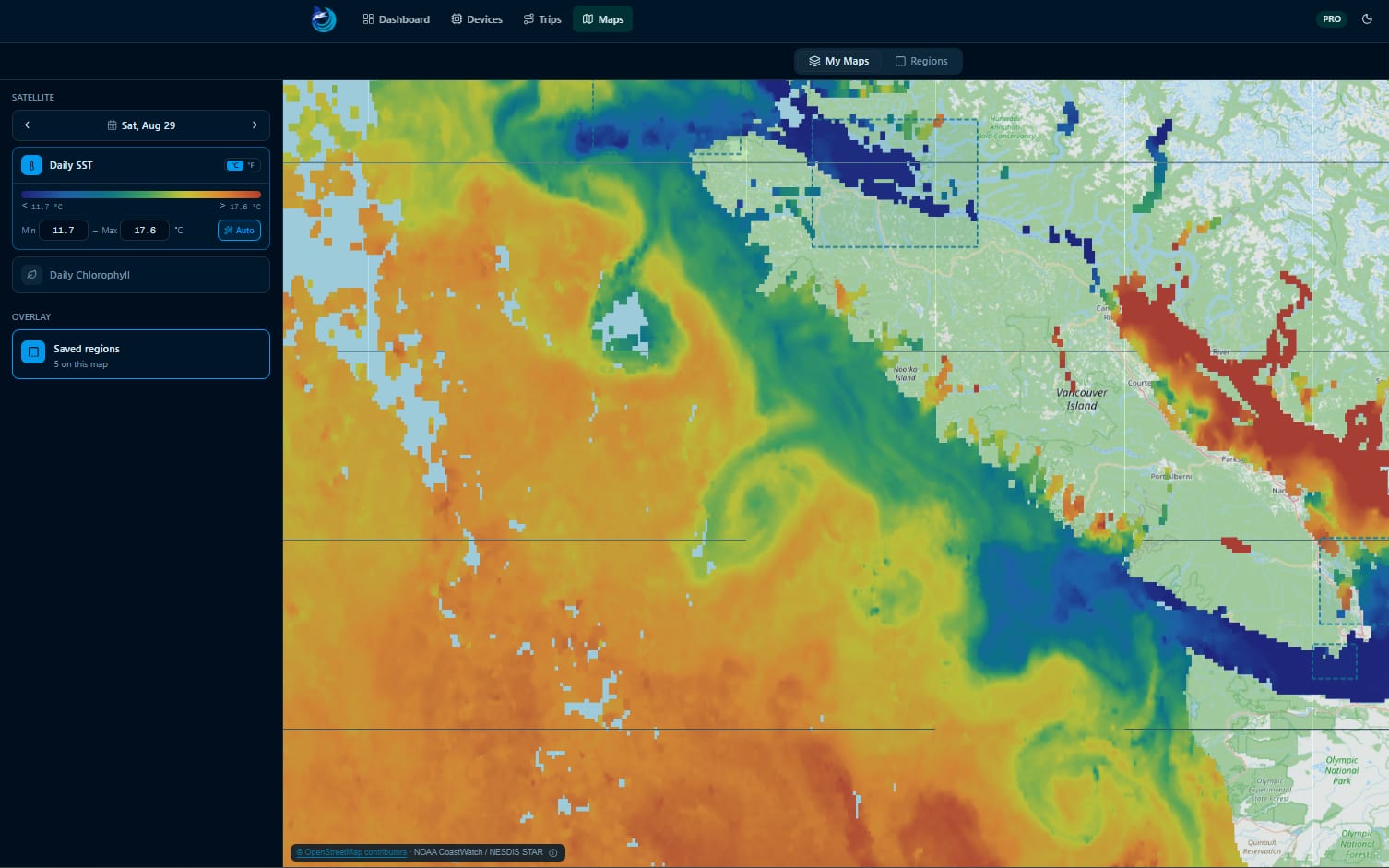

Ocean Hub daily sea-surface-temperature satellite layer over Vancouver Island

Scroll through a trip: map and depth graph on one timeline, then speed, water temperature and detection charts

Insights card: best depth 10 to 20 metres, with fish counts for each depth zone

Best depth

The depth that held the most fish.

Insights card: the three hottest places on the heat map, each with a Show button

Best spots

Your hottest places, one tap from the map.

Insights cards: most fish between 7 and 9 PM, and the largest fish seen on sonar

Best time of day

When the fish showed up, and the largest one.

No box yet? Upload the recording from your sonar's SD card. With a Marlin on board, trips sync at the dock.

Basic is free. See what Pro adds

Free to start

  • Replay any day: map, sonar and depth graph on one timeline
  • Insights, tides, speed and water temperature for every trip
  • Hotspot heatmap, saved marks and trip sharing

Upload from your sonar's SD card

  • Humminbird .SON, Garmin .RSD, Lowrance and Simrad .SL2 and .SL3
  • Recording isn't possible on Raymarine units

Pro adds

  • Daily satellite maps: sea surface temperature and chlorophyll
  • Offline map regions for your Marlin
  • 3D trip view
  • More maps and layers Coming soon

Marlin edge AI box

The brains of your boat.

A sealed aluminium computer that runs Ocean AID's fish-detection models on board. No signal required.

It powers on with the boat, runs on 12 V and works the same offshore as it does at the dock.

Full specifications on oceanaid.ca

3D render of the Marlin edge AI box: a black finned aluminium enclosure with a power button and the Marlin logo

On the water · Marlin live app

Know what's under the boat. Fish for the ones you want.

Marlin tags every fish with a size and depth, live. Filter to the size you want and watch them stack up on the map.

  • Detects fish, bait balls, schools and downrigger lines in real time
  • Sizes every fish: Bait, XS, S, M, L, XL
  • Heatmap of where fish are stacking along your track
  • Depth graph and a split view with sonar
  • Trained on 100,000+ fish detections verified by captains

A CAD $50 deposit reserves your Marlin.

The live app on your display: heatmap, depth graph and sonar on one screen
Filtering by size at the helm
Detection clusters along the track

Marlin Connect · free app for Marlin owners

A second screen for your Marlin, in your hand.

The free iOS and Android app for your Marlin. It connects over the box's own Wi-Fi hotspot or your boat's Wi-Fi, so it needs no cell signal.

Built for wet hands and direct sun: big targets and high contrast.

  • Live sonar and detections from your Marlin
  • Live map with your track, depth and speed
  • Trips and marks saved as you go
  • Turns on the box's Wi-Fi over Bluetooth when you need it
  • Captain Codas Coming soon A fishing AI you can talk to. Requires a Marlin T120 and Ocean Hub Pro.

Requires a Marlin box on board. No Marlin? Start free in the Ocean Hub, or reserve a Marlin with a CAD $50 deposit.

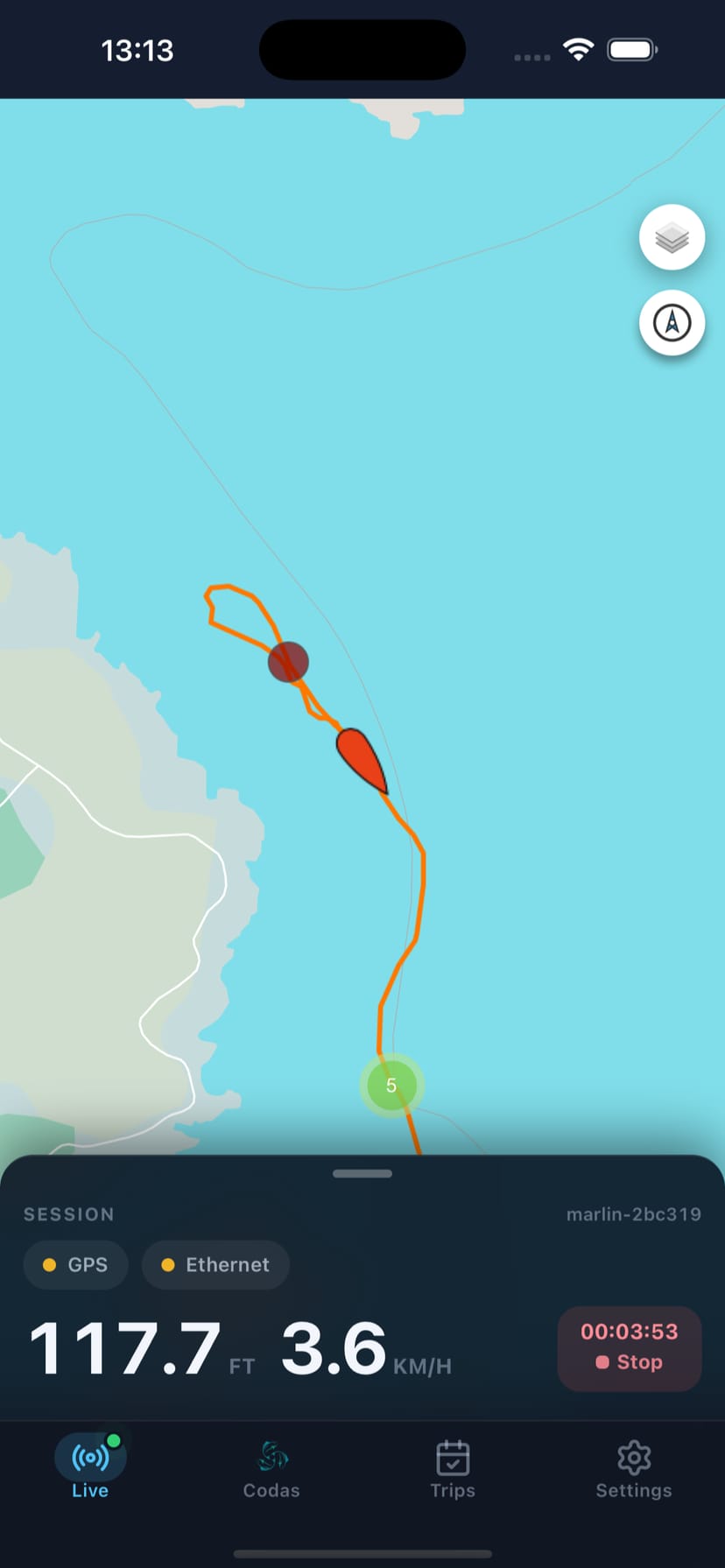

Marlin Connect live map with the boat's track and depth and speed readouts
Live map and track

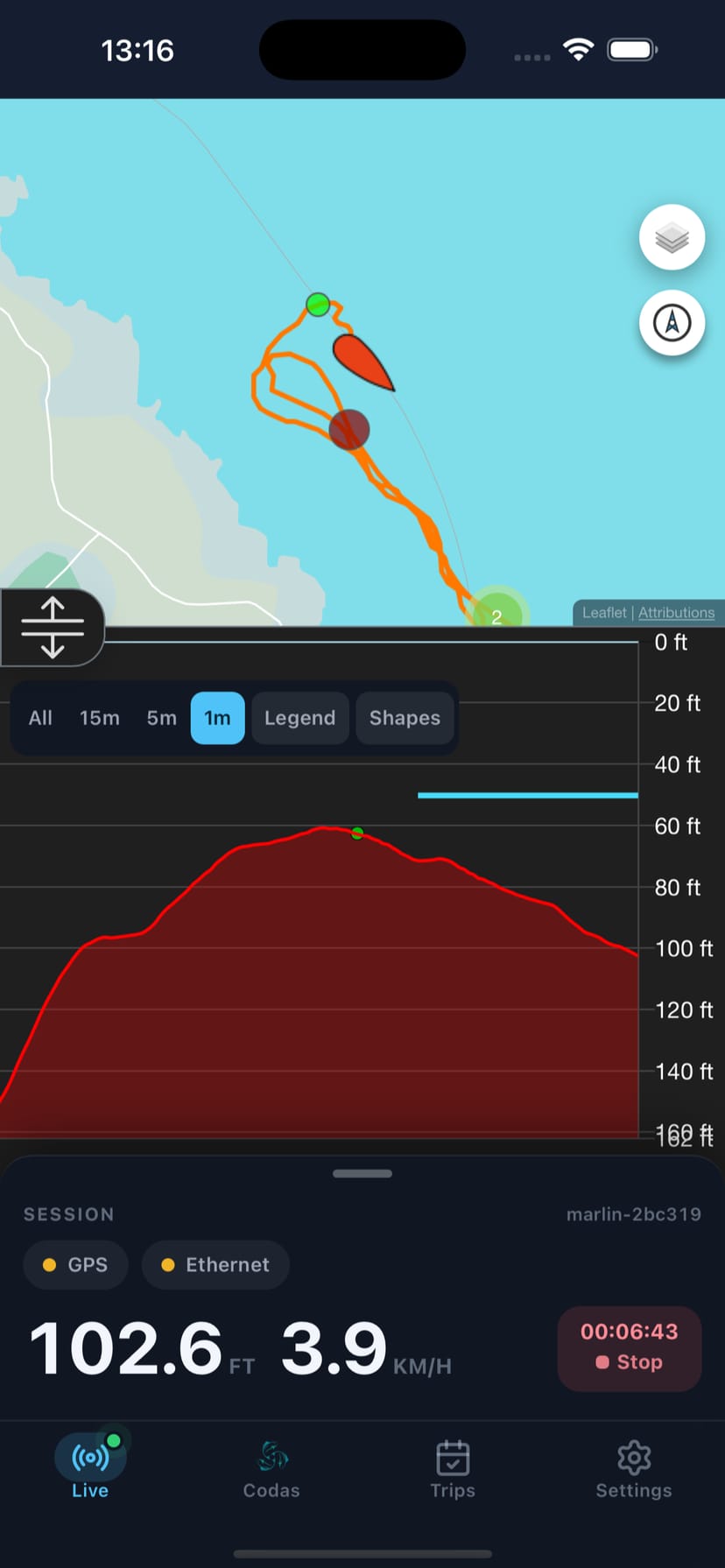

Marlin Connect split view: map above a fish-by-depth graph
Map + fish-by-depth graph

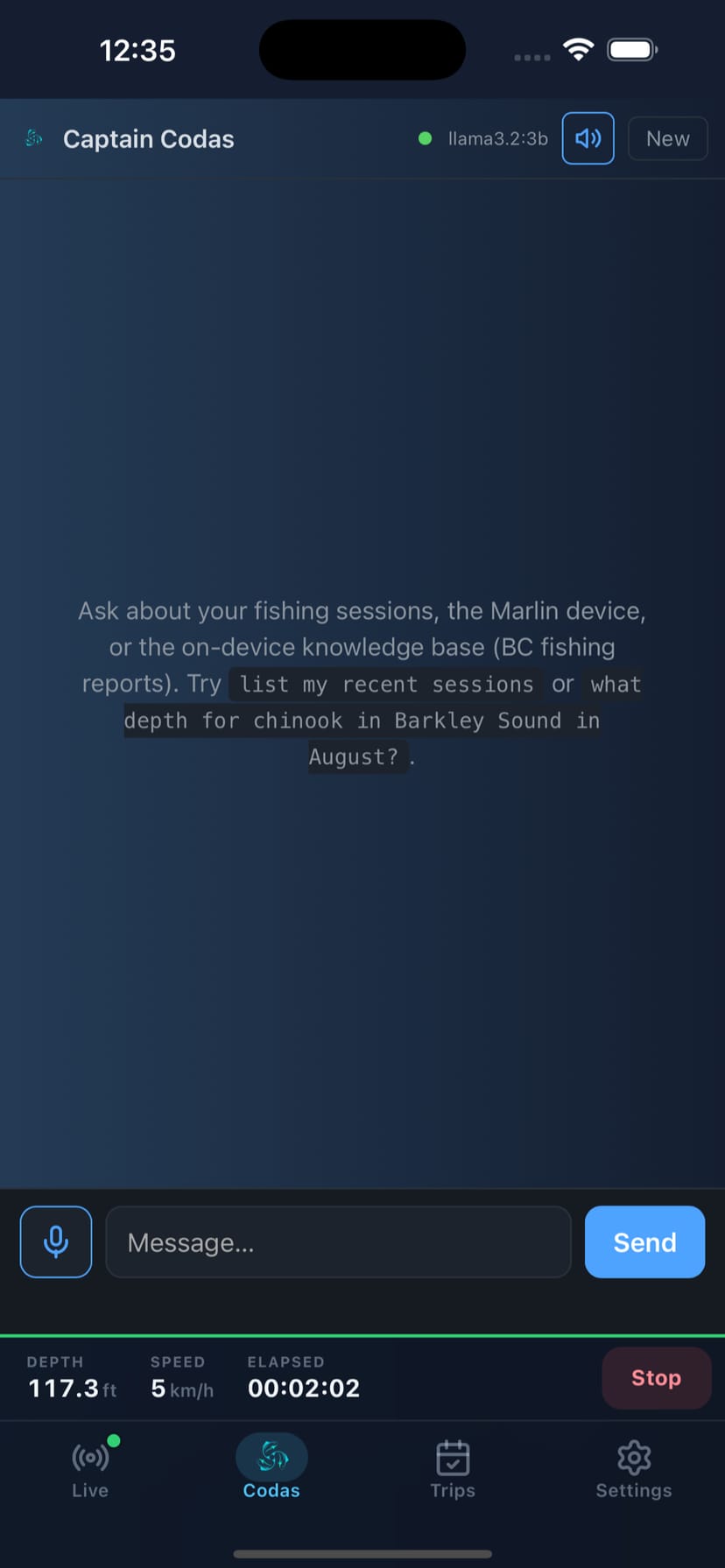

Captain Codas chat screen in Marlin Connect (coming soon)
Captain Codas Coming soon

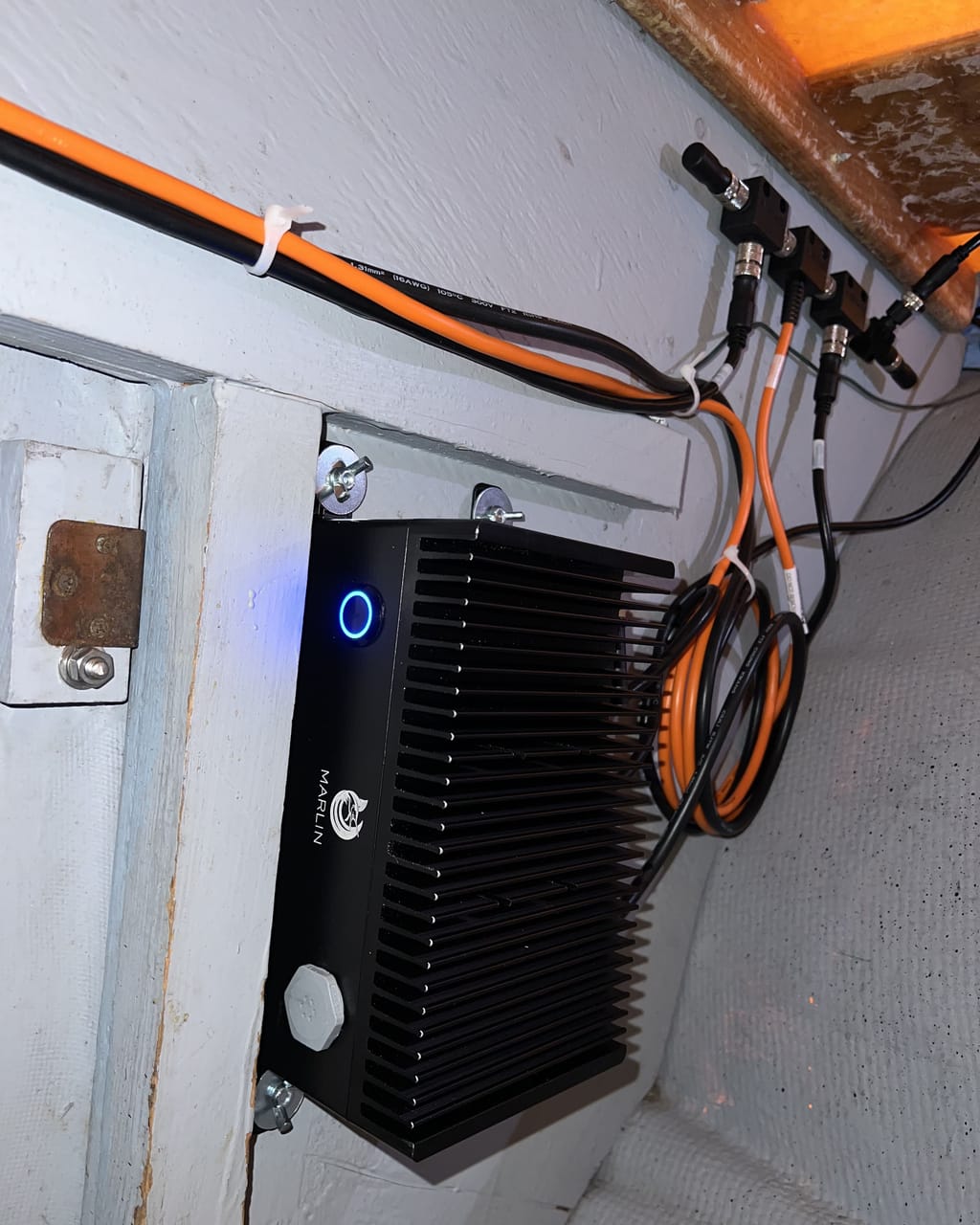

A Marlin box mounted on a bulkhead aboard a boat, powered on with its blue status ring lit
Marlin mounted and running aboard a captain's boat

Compatibility and install

One Ethernet cable connects Marlin to your sonar.

Marlin reads your sonar over your display's Ethernet port. See the live app on your display, your phone, or both at once.

On your display

Supported displays show the Marlin app on screen. No phone needed.

On a phone, tablet or computer

Marlin Connect works with every sonar Marlin can read. So does a browser on a computer on the same network.

Find your display

Choose your display brand

Garmin

Marlin appears under the Vessel apps tab on OneHelm chartplotters. No extra setup.

Garmin displays and how Marlin works with them
DisplaySonar to MarlinOn your displayOn phone, tablet or computer
GPSMAP 9000 series9x10, 9x13, 9x17 xsv, 9x19, 9x22, 9x24, 9x27YesYesYes
GPSMAP 8400, 8600 and 87008x10 to 8x24 and the 8700 black boxYesYesYes
GPSMAP 7x3, 9x3, 12x3, 15x3 and 16x3YesYesYes
GPSMAP 7x2 Plus, 9x2 Plus and 12x2 PlusYesYesYes
GPSMAP 7x2, 9x2, 10x2 and 12x2No OneHelmYesNoYes
GPSMAP 7400 and 7600No OneHelmYesNoYes
ECHOMAP UHD2 and Ultra 2No OneHelmComing soonNoComing soon

Cable. Standard RJ45 on Garmin Marine Network ports. GPSMAP 9000 (BlueNet) needs Garmin adapter 010-12531-02.

Simrad

Tested on evo3, NSX, NSX ULTRAWIDE, NSS 4 and NSO 4. Marlin appears with the display's other apps.

Simrad displays and how Marlin works with them
DisplaySonar to MarlinOn your displayOn phone, tablet or computer
NSS evo3 and NSS evo3S7, 9, 12 and 16 inchYesYesYes
NSO evo3 and NSO evo3S16, 19 and 24 inchYesYesYes
NSS 4 and NSO 4Often called evo4YesYesYes
NSX and NSX ULTRAWIDEYesYesYes
GO7 XSR, GO9 and GO12YesYesYes

Cable. Yellow 5-pin port: adapter 000-0127-56 to RJ45. Newer green M12 port on NSS 4 and NSO 4: M12 to RJ45 adapter.

Lowrance

Same platform and cables as Simrad. Tested on HDS PRO.

Lowrance displays and how Marlin works with them
DisplaySonar to MarlinOn your displayOn phone, tablet or computer
HDS PRO9, 10, 12 and 16 inchYesYesYes
HDS LIVE7, 9, 12 and 16 inchYesYesYes
HDS Carbon7, 9, 12 and 16 inchYesYesYes
Elite FS7 and 9 inchYesYesYes
HDS Gen3No third-party appsYesNoYes
Elite Ti2, HOOK Reveal and EagleNo network port. Upload SD card recordings to the Ocean HubNoNoNo

Cable. Yellow 5-pin port: adapter 000-0127-56 to RJ45.

B&G

Same platform and cables as Simrad and Lowrance. Coming soon.

B&G displays and how Marlin works with them
DisplaySonar to MarlinOn your displayOn phone, tablet or computer
Zeus3 and Zeus3SIncluding Glass HelmComing soonComing soonComing soon
Zeus S7, 9 and 12 inchComing soonComing soonComing soon
Vulcan 7, 9 and 12Coming soonComing soonComing soon
Zeus SR10, 12 and 16 inchComing soonComing soonComing soon

Cable. Yellow 5-pin port: adapter 000-0127-56 to RJ45. Zeus SR also has a newer M12 port.

Raymarine

Axiom sonar works today, so Marlin Connect works now. The app on the Axiom display is coming soon.

Raymarine displays and how Marlin works with them
DisplaySonar to MarlinOn your displayOn phone, tablet or computer
Axiom, Axiom+ and Axiom 2YesComing soonYes
Axiom Pro and Axiom 2 ProYesComing soonYes
Axiom XL and Axiom 2 XLYesComing soonYes
eS Series and gS SeriesNo third-party appsComing soonNoComing soon
Element and DragonflyNo network portNoNoNo

Cable. RayNet to RJ45 cable: A62360 (1 m) or A80151 (3 m).

Furuno

Coming soon.

Furuno displays and how Marlin works with them
DisplaySonar to MarlinOn your displayOn phone, tablet or computer
NavNet TZtouch3TZT9F, TZT12F, TZT16F and TZT19FComing soonComing soonComing soon
NavNet TZtouchXLComing soonComing soonComing soon
NavNet TZtouch2Coming soonComing soonComing soon

Cable. Standard Ethernet cable.

Not sure about your display? Book a demo

Up and running in minutes. No shop visit.

1

Mount

Anywhere convenient

2

Power

12 V DC on a fused, switched circuit

3

Connect

One Ethernet cable to the marine network (adapter cable for some units)

4

Power on

The live app opens on your display or in Marlin Connect

Optional NMEA 2000 drop for extra telemetry.

Pricing · Ocean Hub plans

Free to start. Pro when you want more.

Pro is billed monthly inside the Ocean Hub. Prices in CAD.

Basic

Free

  • 1 device registration
  • 5 GB cloud storage
  • 2 trip uploads/week
  • 1 AI scan/week
  • Default maps (no custom map regions)
  • Share trips
  • Cloud sync
  • Fish sizing
Create free account

Pro

CAD $24/ month

  • 3 device registrations
  • 100 GB cloud storage
  • Unlimited uploads
  • 20 AI scans/month
  • 15 offline map regions for your Marlin
  • Daily satellite maps (sea surface temperature, chlorophyll)
  • 3D trip view
  • Premium maps Coming soon
  • Captain Codas AI bot (requires Marlin T120) Coming soon
  • Advanced fish sizing Coming soon
Sign up, then upgrade to Pro

Lodge Coming soon

Custom

For fishing lodges, charters and commercial fleets.

  • Priority support
  • Fish-detection models tuned for your fleet
  • Access control for your team
  • Advanced sharing and analytics
  • On-premise installation services
  • Custom contracting and billing
Contact us

Subscriptions are managed in your Ocean Hub account. Marlin hardware is sold separately on oceanaid.ca.

Pricing · Marlin box

Marlin T40 or T120?

Same box, same ports, same software. The T120 adds memory, storage headroom and faster real-time detection, and it's built for what comes next.

Marlin T40 and T120 compared
Specification Marlin T40 Marlin T120
ChipNVIDIA Jetson Orin Nano 8 GB (Super)NVIDIA Jetson Orin NX 16 GB (Super)
Real-time detection67 TOPS157 TOPS, over twice the AI performance
Memory8 GB16 GB
StorageNVMe SSDNVMe SSD with more headroom
Built forToday's Marlin featuresToday's features plus what's next: Captain Codas and future releases
Enclosure and portsBoth: IP67 diecast aluminium, identical I/O, same Marlin software
PriceCAD $2,499CAD $3,499
How to orderReserve a Marlin with a CAD $50 deposit, applied to the purchase price. Full specifications and pricing on oceanaid.ca.

TOPS = trillions of AI operations per second, the measure of how fast the box runs detections.

  • 1-year limited warranty
  • 60-day return policy on devices bought directly from Ocean AID
  • Made and designed in Canada with domestic and imported parts

Better fishing. Healthier ocean.

Each Marlin box sold removes 10 lbs of ghost gear and plastic from our oceans.

Ocean AID is locally owned and operated in Victoria, BC. Marlin is made and designed in Canada with domestic and imported parts.

Want to see Marlin running before you reserve?

Your next trip starts at the dock.

Create a free Ocean Hub account now. Reserve a Marlin for the boat.

A CAD $50 deposit reserves your Marlin. 1-year limited warranty · 60-day return policy on direct purchases.
